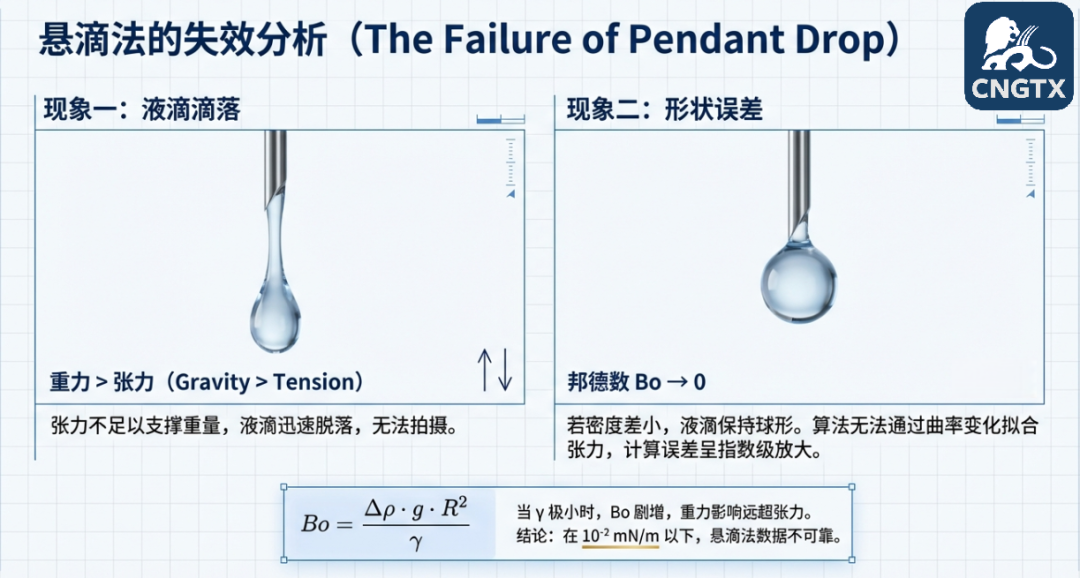

Part 2: Key Challenges — Extreme Reservoir Environments and the Technical Divide in Interfacial Metrology承接上一部分对低张力泡沫驱完美理论体系的探讨，本部分将无情地揭示将这一技术推向矿场实际应用时所遭遇的巨大现实阻力。地层深处的高温、超高盐度以及极端非均质性，共同构筑了一道苛刻的化学战壕。与此同时，物理学家和工程师们面临着一个更为基础的科学拷问：如何准确地测量极其微弱的超低界面张力并科学地量化评估高度动态的泡沫性能？这构成了检验整个体系可行性的最大试金石与技术瓶颈。Following the previous section's exploration of the perfect theoretical system of low-tension foam flooding, this section will ruthlessly reveal the immense practical resistance encountered when pushing this technology toward actual field application. The high temperature, ultra-high salinity, and extreme heterogeneity deep within the formation jointly construct a harsh chemical trench. Simultaneously, physicists and engineers face a more fundamental scientific interrogation: how to accurately measure the extremely faint Ultra-Low Interfacial Tension and scientifically quantify and evaluate the highly dynamic Foam Properties? This constitutes the greatest touchstone and technical bottleneck for testing the feasibility of the entire system.在实际且恶劣的油藏地质环境中，注入的表面活性剂分子和原位生成的泡沫必须经受住极端热力学和化学条件的严酷考验。以中国西部及部分海上盆地的油藏为例，储层温度通常高达 80℃ 至 130℃ 以上，地层水矿化度（即盐度）更是能够突破 20×10⁴ mg/L，且其中富含极具破坏性的钙（Ca²⁺）、镁（Mg²⁺）等二价金属离子。在这样的高温高盐恶劣环境下，传统的碳氢阴离子表面活性剂（如石油磺酸盐）极易与二价金属离子发生络合沉淀，或者在热应力下发生共价键的不可逆热降解断裂，导致其附着于界面并降低张力的核心能力彻底丧失。同时，根据流变学与热力学原理，高温会极大地降低流体表观粘度，剧烈加剧泡沫液膜（Plateau border）的重力排液速度，加速气体透过液膜的扩散速率，导致泡沫体系在微观尺度上迅速发生粗化（Coarsening）和破裂。更为致命的是，原油本身在物理化学性质上就是一种高效的天然消泡剂。当稳定推进的泡沫段塞在狭窄的孔隙中与残余原油接触时，亲油性的原油液滴会迅速侵入并穿透泡沫的水基液膜。这种现象在热力学上由所谓的“铺展系数（Spreading Coefficient）”和“架桥系数（Bridging Coefficient）”所支配，一旦原油在气液界面铺展或在液膜两侧形成架桥，将导致泡沫液膜瞬间局部变薄并引发剧烈的链式破灭反应。尽管这种“遇油消泡”的特性在特定的地质模型中（如单纯为了封堵水窜高渗通道）是有利且智能的，但如果泡沫体系不够强韧，在尚未充分扫掠并波及深层含油区之前就过早地大面积崩溃，则会导致精心设计的流度控制策略彻底宣告流产。In the actual and cruel geological environment of reservoirs, injected surfactant molecules and in-situ generated foams must withstand the severe tests of extreme thermodynamic and chemical conditions. Taking the reservoirs in western China and some offshore basins as examples, reservoir temperatures usually range from 80°C to over 130°C, and the formation water salinity can exceed 20×10⁴ mg/L, heavily laden with highly destructive divalent metal ions such as calcium (Ca²⁺) and magnesium (Mg²⁺). In such harsh high-temperature and high-salinity environments, traditional hydrocarbon anionic surfactants (like petroleum sulfonates) are highly susceptible to complexation and precipitation with divalent metal ions, or irreversible thermal degradation and breaking of covalent bonds under thermal stress, causing a total loss of their core ability to attach to the interface and reduce tension. Meanwhile, according to rheological and thermodynamic principles, high temperatures drastically reduce the apparent viscosity of the fluid, fiercely accelerating the gravity drainage rate of the foam's liquid film (Plateau border), and hastening the gas diffusion rate across the film, leading to rapid coarsening and collapse of the foam system at the microscopic scale. Even more fatally, crude oil itself acts as a highly efficient natural defoamer in its physicochemical properties. When a steadily advancing foam slug contacts residual crude oil within narrow pores, the lipophilic crude oil droplets rapidly invade and penetrate the water-based liquid film of the foam. This phenomenon is thermodynamically governed by the so-called "Spreading Coefficient" and "Bridging Coefficient"; once the crude oil spreads at the gas-liquid interface or forms a bridge across both sides of the liquid film, it causes instantaneous local thinning of the foam film and triggers a violent chain reaction of collapse. Although this "defoaming upon oil contact" characteristic is advantageous and intelligent in specific geological models (such as purely for plugging water-channeling high-permeability pathways), if the foam system is not resilient enough and prematurely collapses on a large scale before adequately sweeping and reaching the deep oil-bearing zones, the meticulously designed mobility control strategy will result in a complete abortion. 除了要解决复杂的化学配方抗性问题外，科学界在分析、验证和定量表征这些强化采油体系的性能时，同样撞上了一堵由经典物理学定律筑起的高墙。首当其冲的便是界面张力测量领域的严峻挑战。在历史的较长时期内，传统的界面张力测量方法（例如悬滴法 Pendant Drop、吊环法 Du Noüy Ring 或吊片法 Wilhelmy Plate）主导着实验室的数据输出。然而，这些方法在物理学原理上存在一个无法逾越的界限：它们无一例外地依赖于液滴的自身重力与表面张力之间的精密力学平衡。当科研人员开发的顶尖表面活性剂体系试图将原油与水之间的界面张力压低至 10⁻³ mN/m 以下的极限区间（即实现绝对的超低界面张力）时，物理规则被彻底颠覆了。在这个极低张力的微观世界里，界面张力所能提供的用于挂住或维持液滴形态的向上拉力变得极其微弱，远远不足以抗衡液滴自身的重力作用。在流体力学中，这种状态对应于一个极其巨大的邦德数（Bond Number，即表示重力与表面张力之比的无量纲数，此时 Bo ≫ 1）。在这种失衡的力场中，低密度的油滴在水相中根本无法悬挂在注射针头上，也无法形成任何具有数学解析意义的稳定界面形态，它们会直接脱离并破碎上浮，从而导致所有基于重力平衡原理的常规测量仪器瞬间完全失效。Beyond resolving the complex resistance issues of chemical formulations, the scientific community hit a massive wall built by the laws of classical physics when analyzing, verifying, and quantitatively characterizing the performance of these enhanced oil recovery systems. Bearing the brunt is the severe challenge in the field of interfacial tension measurement. For a long historical period, traditional interfacial tension measurement methods (such as the Pendant Drop, Du Noüy Ring, or Wilhelmy Plate methods) dominated laboratory data output. However, these methods possess an insurmountable boundary in their physical principles: without exception, they rely on the precise mechanical equilibrium between the droplet's own gravity and surface tension. When top-tier surfactant systems developed by researchers attempt to suppress the interfacial tension between crude oil and water into the extreme regime below 10⁻³ mN/m (i.e., realizing absolute Ultra-Low Interfacial Tension), physical rules are thoroughly subverted. In this microscopic world of extremely low tension, the upward pull provided by the interfacial tension to hang or maintain the droplet's shape becomes extremely feeble, far from sufficient to counteract the droplet's own gravitational pull. In fluid mechanics, this state corresponds to a tremendously massive Bond Number (a dimensionless number representing the ratio of gravity to surface tension, where Bo ≫ 1). In such an unbalanced force field, low-density oil droplets simply cannot hang from the injection needle in the aqueous phase, nor can they form any stable interfacial shape with mathematical analytical significance; they detach directly, shatter, and float upward, causing all conventional measuring instruments based on the principle of gravitational equilibrium to fail instantly and completely.与界面张力测量的理论困境如出一辙，对体系的泡沫性能（Foam Properties）进行科学而严谨的量化评估也同样充满了技术迷雾。泡沫从根本上说是一种极度缺乏热力学稳定性的耗散结构系统，其宏观的生成能力（即瞬时起泡体积）和衰变生命周期（即排液半衰期）受到外界环境压力、温度梯度、机械剪切速率以及油相存在的异常强烈且非线性的影响。早期的泡沫测试标准往往非常简陋，多停留在简单的试管手工摇瓶法（Bottle Test）或罗斯-迈尔斯倾注法（Ross-Miles method），这些方法产生的剪切能量极低，根本无法真实再现高压流体在地层深处多孔介质中高速穿透孔喉时所经受的极端机械剪切力和破坏力。这就导致了实验室数据与矿场实际表现之间的严重脱节。工业界迫切需要一种建立在标准化操作流程之上的、具有极高能量输入的高剪切仪器，以高度可重复且标准化的方式量化泡沫在微观尺度上的排液、聚并和粗化行为，进而为建立表面活性剂配方分子结构与矿场宏观驱油动态之间的准确数学模型提供可靠的数据支撑。Matching the theoretical dilemma of interfacial tension measurement, conducting a scientific and rigorous quantitative evaluation of the system's Foam Properties is equally fraught with technical fog. Foam, fundamentally, is a dissipative structural system suffering from an extreme lack of thermodynamic stability; its macroscopic generation capacity (i.e., instantaneous foam volume) and decaying life cycle (i.e., drainage half-life) are exceptionally strongly and non-linearly influenced by external environmental pressure, temperature gradients, mechanical shear rates, and the presence of the oil phase. Early foam testing standards were often rudimentary, mostly relying on simple manual test tube bottle-shaking methods (Bottle Test) or the Ross-Miles pour method; the shear energy generated by these methods is extremely low and completely unable to authentically replicate the extreme mechanical shear and destructive forces experienced by high-pressure fluids penetrating pore throats at high speeds deep within the formation. This resulted in a severe disconnect between laboratory data and actual field performance. The industry urgently required a high-shear instrument with extreme energy input, built upon standardized operational procedures, to quantify foam's drainage, coalescence, and coarsening behaviors at the microscopic scale in a highly reproducible and standardized manner, thereby providing reliable data support for establishing accurate mathematical models bridging surfactant formulation molecular structures and macroscopic oil displacement dynamics in the field.下期预告：面对如此令人望而生畏的技术高墙，顶尖的物理学家和工程师们并未表现出气馁与停滞。正是这些严峻的挑战，催生了仪器学与材料化学领域的伟大跨越。在即将展开的第三部分中，我们的分析将进行一次激动人心的系统性反击，详细揭秘为了测量极限低张力而创造的唯一破局仪器，并全景解析工业界是如何通过极其严苛的操作程序科学测定泡沫性能，最终孕育出攻克极端环境的前沿化学配方的。 Next: Faced with such a daunting technological high wall, top physicists and engineers showed no signs of discouragement or stagnation. It was precisely these severe challenges that spawned massive leaps in the fields of instrumentation and materials chemistry. In the upcoming Part 3, our analysis will stage an exciting systematic counterattack, detailing the sole groundbreaking instrument created to measure extreme low tensions, and providing a panoramic breakdown of how the industry scientifically determines foam properties through extremely rigorous operating procedures, ultimately breeding cutting-edge chemical formulations that conquer extreme environments.
