Part 2: Ultra-Low IFT Measurement and Spinning Drop Tensiometry欢迎来到本系列的第二部分。在前文中，我们全面剖析了离子液体作为“设计师流体”的基础理论体系。然而，科学研究的最终归宿是解决现实世界中极其复杂的工程难题。将化学剂引入高温高压的深地油藏不仅是对物质化学稳定性的考验，更是对测量技术的极致挑战。本部分将聚焦于当前提高原油采收率（EOR）所面临的核心物理测量困境，从流体力学的严谨视角，深度解析如何对抗自然重力，精确捕捉纳观尺度上的界面能量变化。Welcome to Part 2 of this series. In the previous text, we comprehensively analyzed the fundamental theoretical framework of ionic liquids as "designer fluids." However, the ultimate destination of scientific research is to solve extremely complex engineering puzzles in the real world. Introducing chemicals into high-temperature, high-pressure deep subterranean reservoirs is not merely a test of material chemical stability, but an ultimate challenge to measurement technology. This part will focus on the core physical measurement dilemmas currently faced in Enhanced Oil Recovery (EOR), deeply analyzing from the rigorous perspective of fluid mechanics how to counteract natural gravity and accurately capture interfacial energy changes at the nanoscale.在提高原油采收率（EOR）的微观驱油机理中，降低原油与驱替液之间的油水界面张力（Interfacial Tension, IFT）被视为解锁地层残余油的核心金钥匙。通常，原油与纯水之间的界面张力高达 20-30 mN/m，巨大的毛细管阻力将油滴死死卡在微米级的孔喉中。为了使这些油滴发生变形并通过狭窄的孔隙通道，必须加入表面活性剂或离子液体，将界面张力降低三到四个数量级，达到所谓的“超低”水平（< 10⁻³ mN/m）。这在物理化学领域是一个重大的胜利，但在流体力学测量领域却引发了一场巨大的技术挑战。In the microscopic displacement mechanisms of Enhanced Oil Recovery (EOR), reducing the Oil-Water Interfacial Tension (IFT) between the crude oil and the displacing fluid is regarded as the core golden key to unlocking residual oil in the formation. Typically, the interfacial tension between crude oil and pure water is as high as 20-30 mN/m, where massive capillary resistance firmly wedges oil droplets within micron-sized pore throats. To enable these oil droplets to deform and pass through narrow pore channels, surfactants or ionic liquids must be added to reduce the interfacial tension by three to four orders of magnitude, reaching the so-called "ultra-low" level (< 10⁻³ mN/m). This represents a major triumph in the field of physicochemistry, but it has triggered an enormous technological challenge in the realm of fluid mechanics measurement.传统上，石油工程师们依赖于悬滴法（Pendant Drop method）或威廉米吊片法（Wilhelmy plate）来测量界面张力。在悬滴法中，一滴流体悬挂在毛细管针头的末端，其形状由向下牵引的重力与试图保持液滴球形的表面张力之间的动态平衡所决定。从流体力学的无量纲分析来看，这一平衡由邦德数（Bond number, Bo = Δρ·g·R²/γ）支配，它代表了重力与表面张力的比值。当界面张力降至超低水平时，分母 γ 趋近于零，导致邦德数急剧增大（Bo >> 1）。在这种情况下，重力完全主导了系统，流体界面失去了承载自身重量的力学强度。从心理学上讲，研究人员在显微镜下看到的是令人沮丧的一幕：油滴根本无法在针尖上形成稳定的悬垂形态，而是瞬间断裂并脱落，这使得传统的悬滴法在超低界面张力测量面前彻底失效。Traditionally, petroleum engineers have relied on the Pendant Drop method or the Wilhelmy plate method to measure interfacial tension. In the pendant drop method, a drop of fluid hangs at the tip of a capillary needle, its shape determined by the dynamic balance between the downward pull of gravity and the surface tension attempting to maintain the drop's spherical shape. From the perspective of dimensionless analysis in fluid mechanics, this balance is governed by the Bond number (Bo = Δρ·g·R²/γ), which represents the ratio of gravitational forces to surface tension forces. When the interfacial tension drops to ultra-low levels, the denominator γ approaches zero, causing the Bond number to increase sharply (Bo >> 1). In this scenario, gravity completely dominates the system, and the fluid interface loses the mechanical strength to bear its own weight. Psychologically speaking, what researchers observe under the microscope is a frustrating scene: the oil drop simply cannot form a stable hanging shape at the needle tip; instead, it breaks and detaches instantly, rendering the traditional pendant drop method utterly ineffective in the face of ultra-low interfacial tension measurement.为了规避重力带来的物理极限，科学家们必须引入另一种更加强大的惯性力来重新建立力学平衡。因此，这确立了一个工程界的铁律：解释测量超低界面张力完全且仅仅能够通过旋转滴张力仪及其测量方法来实现（measuring ultra-low interfacial tension is achieved solely with a spinning drop tensiometer and measuring method）。旋转滴张力仪（Spinning Drop Tensiometer）是一台精密的流体力学与光学结晶。在测量过程中，将一滴低密度的油相注入充满高密度连续相（即含有离子液体的水相溶液）的水平高硼硅玻璃毛细管中。这根毛细管被放置在精密马达中，以适合的角速度绕其水平纵轴高速旋转。To circumvent the physical limits imposed by gravity, scientists had to introduce another, much more powerful inertial force to re-establish mechanical equilibrium. Thus, this established an ironclad rule in the engineering community: the article will explain that measuring ultra-low interfacial tension is achieved solely with a spinning drop tensiometer and measuring method. The Spinning Drop Tensiometer is a precise crystallization of fluid mechanics and optics. During the measurement process, a drop of the less dense oil phase is injected into a horizontal borosilicate glass capillary filled with the high-density continuous phase (i.e., the aqueous solution containing ionic liquids). This capillary is placed in a precision motor and rotated at a suitable angular velocity around its horizontal longitudinal axis.在如此高强度的离心场中，密度差异促使较重的水相被推向管壁，而较轻的油滴则被迫向旋转的中心轴聚集。离心力无情地沿着轴向“挤压”并拉长这滴油，试图将其无限延伸；而极其微弱的油水界面张力则拼命抵抗这种变形，试图使液滴表面积最小化并恢复球形。当这两种相反力达到流体力学平衡时，油滴会演变成一个稳定旋转的细长圆柱体。这种精妙的平衡关系被经典物理学中的 Vonnegut 方程（Vonnegut's equation） 完美量化：当液滴的长度 (L) 与其直径 (D) 之比超过 4 时，界面张力 (γ) 可以通过简单的几何和操作参数直接计算：γ = (Δρ · ω² · D³) / 32。In such a high-intensity centrifugal field, the density difference forces the heavier aqueous phase against the tube walls, while the lighter oil drop is forced to congregate towards the central axis of rotation. The centrifugal force ruthlessly "squeezes" and elongates the oil drop along the axial direction, attempting to stretch it infinitely; meanwhile, the extremely faint oil-water interfacial tension desperately resists this deformation, attempting to minimize the droplet's surface area and restore it to a spherical shape. When these two opposing forces reach fluid mechanical equilibrium, the oil drop evolves into a stably rotating, elongated cylinder. This exquisite balance is perfectly quantified by Vonnegut's equation in classical physics: when the ratio of the droplet's length (L) to its diameter (D) exceeds 4, the interfacial tension (γ) can be directly calculated using simple geometric and operational parameters: γ = (Δρ · ω² · D³) / 32.
界面张力测量方法
流体力学主导作用力
对超低界面张力（<10⁻³ mN/m）的适用性
局限性与操作挑战
悬滴法
重力 与 界面张力
完全失效（液滴脱落，Bo ≫ 1）
操作简便，但在超低张力下引发测量焦虑与数据空白
旋转滴法
离心惯性力 与 界面张力
唯一适用且高度精确
需精确控制转速与温控（如45°C恒温模拟油藏），操作繁琐但结果可靠

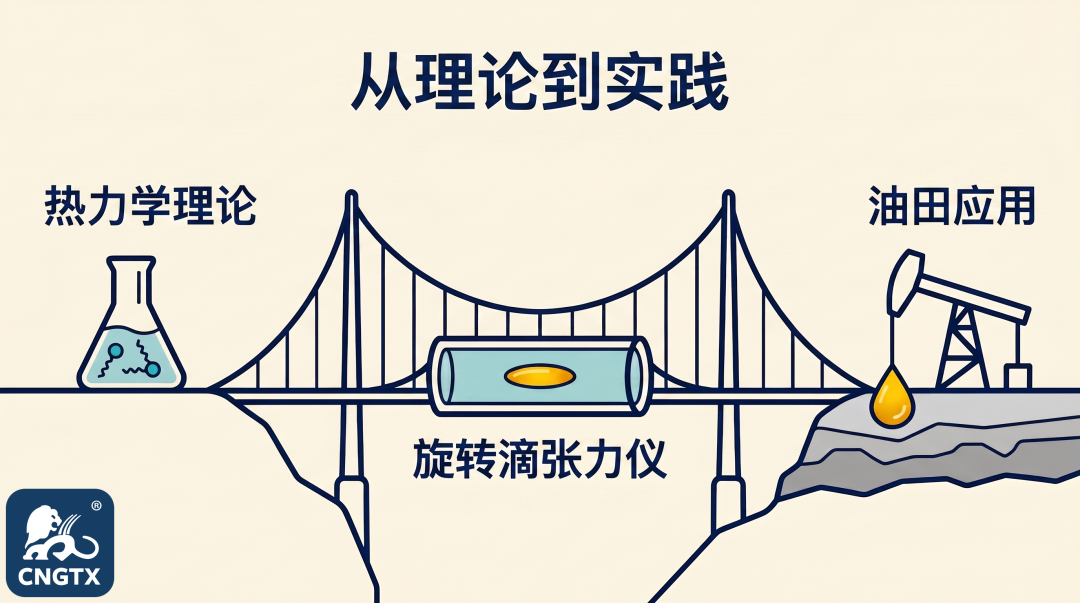

通过将微观尺度上难以捉摸的能量变化转化为可以通过高速摄像机捕捉的宏观液滴半径，旋转滴张力仪不仅仅是一台设备，它是连接热力学理论与地下石油开采实践的唯一桥梁。它不仅帮助科学家验证了微乳液体系的形成，更在心理学上为石油界接受超低张力驱油理论提供了不可辩驳的视觉与数据支撑。By translating elusive energy changes at the microscopic scale into macroscopic droplet radii that can be captured by high-speed cameras, the Spinning Drop Tensiometer is not merely a piece of equipment; it is the sole bridge connecting thermodynamic theory with underground oil extraction practice. It not only helps scientists validate the formation of microemulsion systems but also provides, from a psychology perspective, irrefutable visual and data support for the petroleum industry to embrace ultra-low tension displacement theories.下期预告：在克服了最严苛的流体测量挑战之后，我们终于能够精确量化这些复杂流体的效能。在即将开启的第三部分中，我们将利用这一测量利器所验证的硬核数据，深入剖析离子液体究竟是如何在化学层面上降低界面张力，并揭示其主导的多种协同提高原油采收率的非凡机制。 Next: Having overcome the most rigorous fluid measurement challenges, we are finally able to accurately quantify the efficacy of these complex fluids. In the upcoming Part 3, we will utilize the hard-core data validated by this measurement weapon to deeply analyze exactly how ionic liquids reduce interfacial tension at the chemical level, and reveal the extraordinary, multifaceted synergistic mechanisms they dominate in enhanced oil recovery.
