第三部分：科学之眼——掌控超低张力测量的绝对利器
Part 3: The Eye of Science — The Ultimate Weapon for Mastering Ultra-Low Tension Measurement
在上一部分中，我们已经确立了界面张力与破乳剂的破乳效果之间存在的深刻辩证关系：它既是打破油水界面的必要驱动力，也是需要被精确控制在“最佳击球点”以避免微乳液生成的关键变量。既然界面张力在破乳机理中扮演着如此核心的角色，那么准确获取这一数值就成为了验证配方有效性的重要途径。任何无法被量化的理论在工业应用中都是苍白的。对于工程师而言，如果无法精准捕捉到表面活性剂分子在界面上的微观力学表现，所有的筛选与复配工作都将沦为盲目的试错。因此，在掌握高性能破乳剂的秘密之前，我们必须先探讨如何通过科学的手段来测试界面张力，特别是当面对那些极具挑战性的超低数值时，我们该如何寻找那双能够看清真相的“眼睛”。
In the last part, we established the profound dialectical relationship between interfacial tension and the demulsification effect of the demulsifier: it is both the necessary driving force to break the oil-water interface and a key variable that needs to be precisely controlled at the "optimal hitting point" to avoid the formation of microemulsions. Since interfacial tension plays such a central role in the mechanism of demulsification, accurately obtaining this value has become an important way to verify the effectiveness of a formulation. Any theory that cannot be quantified is pale in industrial application. For engineers, if they cannot accurately capture the microscopic mechanical behavior of surfactant molecules at the interface, all screening and compounding work will devolve into blind trial and error. Therefore, before mastering the secret of high-performance demulsifiers, we must first discuss how to use scientific methods to test interfacial tension, especially when faced with those extremely challenging ultra-low values, and how we should find the "eyes" that can see the truth.3.1 传统测量的局限：当重力法失效
3.1 Limitations of Traditional Measurement: When Gravity Fails在界面化学的常规实验室中，测量表面和界面张力的方法多种多样，如吊片法、吊环法和悬滴法。这些方法在测量一般液体（如水、常规油品，张力在 20-72 mN/m 之间）时表现优异。然而，当我们进入超低界面张力（< 10-2mN/m）的领域时，这些基于重力平衡的传统方法遭遇了物理原理上的“死穴”。即在超低张力条件下，液滴自身的重力大于待测界面张力的百万倍以上。
In routine interface chemistry laboratories, methods for measuring surface and interfacial tension are varied, such as the Wilhelmy Plate, Du Noüy Ring, and Pendant Drop Method. These methods excel when measuring common liquids (like water or conventional oils, with tension between 20-72 mN/m). However, when we enter the realm of Ultra-Low Interfacial Tension (< 10-2mN/m), these traditional methods, based on gravitational equilibrium, encounter a physical "Achilles' heel". That is, under ultra-low tension conditions, the droplet's own gravity is more than a million times greater than the interfacial tension to be measured.悬滴法通过分析挂在针头末端的液滴形状，利用Young-Laplace方程来计算张力。液滴的形状取决于两个力的平衡：重力试图将液滴拉长或拉断，而界面张力试图使液滴收缩并保持球形。这一平衡由无量纲的邦德数（Bo）描述：
The Pendant Drop Method calculates tension by analyzing the shape of a droplet hanging from a needle tip using the Young-Laplace equation. The droplet's shape depends on the balance of two forces: Gravity tries to elongate or detach the droplet, while Interfacial Tension tries to shrink the droplet and keep it spherical. This balance is described by the dimensionless Bond Number (Bo):其中 Δρ 是密度差，g 是重力加速度，R 是液滴半径，γ 是界面张力。
Where Δρ is the density difference, g is gravitational acceleration, R is the droplet radius, and γ is interfacial tension.当 γ 变得非常小（超低张力）时，邦德数 Bo 会变得非常大。这意味着重力的影响远远超过了张力。结果是：
When γ becomes very small (ultra-low tension), the Bond Number Bo becomes very large. This means gravity's influence far outweighs tension. The result is:1. 液滴滴落 (Droplet Detachment)界面张力不足以支撑液滴的重量，液滴会迅速从针头滴落，无法形成稳定的悬挂滴形状供相机拍摄。
Interfacial tension is insufficient to support the droplet's weight, causing it to drip rapidly from the needle, failing to form a stable pendant shape for camera capture.即使液滴勉强挂住，如果密度差很小，液滴会保持近乎完美的球形。对于球形液滴，邦德数趋近于零，形状分析算法无法通过曲率变化来拟合张力，导致计算误差呈指数级放大。
Even if the droplet barely hangs on, if the density difference is small, the droplet remains nearly perfectly spherical. For spherical droplets, the Bond number approaches zero, and shape analysis algorithms cannot fit tension through curvature changes, causing calculation errors to amplify exponentially.正如多项研究指出，对于 10-2mN/m 以下的测量，悬滴法不仅操作极其困难，而且数据往往不可靠。
As numerous studies note, for measurements below 10-2mN/m, the pendant drop method is not only extremely difficult to operate but often yields unreliable data.
3.2 离心力的胜利：旋转滴法的独特性
3.2 Triumph of Centrifugal Force: The Uniqueness of the Spinning Drop Method为了测量这些微弱到几乎察觉不到的力，科学家们引入了一种比重力更强大、且可控的力量——离心力。这就是旋转滴界面张力仪登场的时刻。
To measure these forces so weak they are almost non-existent, scientists must introduce a force more powerful and controllable than gravity—Centrifugal Force. This is the moment the Spinning Drop Tensiometer takes the stage.旋转滴法的核心原理是将低密度的液滴（如油）注入到充满高密度液（如水/表面活性剂溶液）的水平细玻璃毛细管中。当毛细管绕其轴心高速旋转时，巨大的离心力场（可达重力的数千倍）迫使高密度液体向管壁外侧移动，而低密度油滴则被推向旋转轴心。
The core principle of the spinning drop method involves injecting a low-density droplet (like oil) into a horizontal fine glass capillary filled with a high-density matrix liquid (like water/surfactant solution). When the capillary rotates at high speed around its axis, a massive centrifugal force field (up to thousands of times gravity) pushes the heavy phase liquid outward toward the tube wall, while the light phase oil droplet is pushed toward the axis of rotation.在离心力的挤压下，油滴会被拉伸成细长的圆柱形。此时，存在两个对抗的力：
Under the squeeze of centrifugal force, the oil droplet is elongated into a slender cylinder. At this point, two opposing forces exist:- 离心力：试图拉长液滴，使其表面积增加。Attempts to elongate the droplet, increasing its surface area.
- 界面张力：试图收缩液滴，使其恢复球形（最小表面积）。Attempts to shrink the droplet, restoring it to a sphere (minimum surface area).

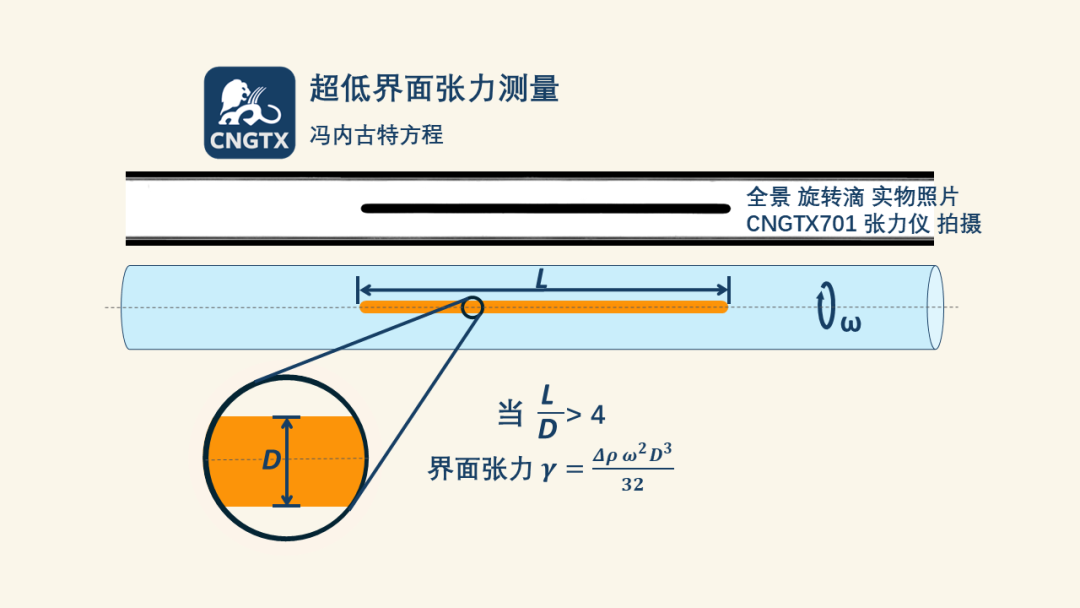

当这两个力达到平衡时，液滴形成稳定的圆柱形状。根据冯内古特方程，我们可以通过测量液滴的直径（d）和转速（ω）极其精确地计算出界面张力：
When these two forces reach equilibrium, the droplet forms a stable cylindrical shape. According to the Vonnegut Equation, we can calculate the interfacial tension with extreme precision by measuring the droplet's diameter (d) and rotational speed (ω):旋转滴法是目前唯一能够准确测量 10-2mN/m 至 10-6mN/m 范围内超低界面张力的方法。 它的优势在于不需要测量接触角，不受润湿性影响，且可以通过调节转速来覆盖极宽的测量范围。
The spinning drop method is currently the sole method capable of accurately measuring ultra-low interfacial tensions in the range of 10-2mN/m to 10-6mN/m. Its advantages are that it does not require contact angle measurement, is unaffected by wettability, and can cover an extremely wide measurement range by adjusting rotational speed.
3.3 尖端科技的结晶：CNGTX 旋转滴界面张力仪
3.3 Crystallization of Cutting-Edge Tech: The CNGTX Spinning Drop TensiometerCNGTX推出的 代表了超低界面张力测量技术的范式转变，将仪器从被动的观察工具转变为主动的智能控制系统。通过解决自有的 TX500C 型产品的根本物理限制——特别是“视野悖论”与“轴向漂移”——CNGTX 为测量超低界面张力（10-3mN/m 及以下）建立了新的标准。
The launch of the CNGTX 600/700 series spinning drop tensiometer represents a paradigm shift in spinning drop tensiometry, transforming the instrument from a manual observation tool into an active, intelligent control system. By addressing the fundamental physical limitations of the previous generation TX500C model—specifically "field-of-view paradoxes" and "axial drift"—CNGTX has established a new standard for measuring ultra-low interfacial tension (10-3mN/m and below).3.3.1CNGTX系列张力仪演进历程：从可行性探索到行业标杆
CNGTX Spinning Drop Tensiometer Evolutionary Path: From Feasibility to Industry BenchmarkCNGTX系列旋转滴界面张力仪的发展经历了从“实验室雏形”到“数字化标准”，再到“智能化引领”的三个关键阶段：
The development of the spinning drop tensiometer has progressed through three critical stages, moving from laboratory prototypes to digital standards, and finally to intelligent leadership:由美国德州大学推出MODEL 500为代表。解决了“超低界面张力是否可以测量”的命题，依靠目测显微镜和冯内古特方程进行人工观测。
Model 500 Era (Pre-2000): Produced by the University of Texas, this stage addressed the feasibility of measuring ultra-low IFT, relying on manual visual observation and the Vonnegut Equation.以美国彪维公司2000年推出的TX500C为代表。引入 CCD 图像采集技术，将精度提高到微米级，并实现数据数字化保存。因其性能优越，迅速成为中国石油石化系统的首选主力机型。
TX500C Era (2000-2019): Launched in 2000 by Bowing Industry Corporation, the TX500C introduced CCD technology, improving precision to microns and enabling digital storage. It became the flagship choice for China's energy sectors.- CNGTX 600/700 系列时期（2019年至今）：
美国CNG公司推出了CNGTX品牌的600/700系列，使用人工智技术解决了TX500C的固有问题。相比上一代 TX500C产品，新系列通过使用CNGTX独有的“全测量管可视的双光路系统”和“旋转滴位置锁定和控制”专利技术，彻底解决了长期困扰行业的“视野受限”和“液滴漂移”难题。通过实现从“视野受限”到看清旋转滴的“全貌”，从“液滴漂移”到让旋转滴“静止”，CNGTX 600/700 系列旋转滴界面张力仪完成了超低界面张力从手动测量到智能测量的代纪跨越。
CNGTX 600/700 Series Period (2019 to Present): CNG ENTERPRISES LIMITED introduced the CNGTX brand's 600/700 series, which used artificial intelligence technology to solve the inherent problems of the TX500C. Compared to the previous generation TX500C product, the new series completely solved the long-standing industry problems of "restricted field of view" and "droplet drift" by utilizing CNGTX's unique "dual-optical imaging system with full capillary visibility" and "Spinning drop position detection and control" patented technologies. By achieving a transformation from a "restricted field of view" to seeing the "full picture" of the rotating droplet, and from "droplet drift" to making the rotating droplet "still," the CNGTX 600/700 Series spinning drop tensiometers completed a generational leap in ultra-low interfacial tension measurement, transitioning from manual to intelligent measurement.
3.3.2看清旋转滴的“全貌”：为什么“全测量管可视的双光路成像系统”是精准测量超低界面张力的关键？
Seeing the Complete Picture: Why a Full View of the Measuring Tube is Critical for Accurate Ultra-Low IFT Measurement?在超低界面张力测量中，数据准确性挑战源于物理学的根本悖论：放大倍率与视场范围成反比。
In ultra-low IFT measurement, data accuracy challenges stem from a fundamental paradox of physics: magnification is inversely proportional to the field of view (FOV).Geometric Prerequisite of Vonnegut Equation冯内古特方程要求液滴长度（L）至少是直径（D）的四倍（L/D ≥ 4）。在超低张力条件下，若要看清微米细节，视野便会缩小到几毫米。传统单镜头系统无法验证液滴整体形态是否达标。
The Vonnegut Equation requires L/D ≥ 4. Under ultra-low tension, seeing micron details shrinks the FOV to millimeters. Traditional single-lens systems cannot verify the overall geometry.Revolutionary Dual-Optical Imaging System DesignCNGTX 通过专利技术构建了“双重视觉”：全景光路覆盖测量管提供全局掌控；测量光路则如同狙击手，亚微米级锁定细节。这解耦了“寻找”与“测量”，确保了数据的绝对完整性。
CNGTX breaks this deadlock with its patented "Dual Vision": a Panoramic Path for global monitoring and a Measurement Path for sub-micron precision. This decouples "searching" and "measuring," ensuring absolute data integrity.3.3.3让旋转滴“静止”：为什么“自动锁定与位置控制”是精准测量超低界面张力的关键？
Keep the Spinning Drop Still: Why “Automatic Locking and Position Control” Is the Key to Precise Ultra-Low IFT Measurement?在现实世界中，重力倾斜（即便只有 0.01°）、热马兰戈尼对流以及轴承机械振动，都会导致旋转滴沿轴向不断“漂移”。在超低张力下，液滴极度敏感，任何手动调节放大倍率的粗暴干扰都可能导致液滴破裂或数据中断。
In reality, gravitational tilt (even 0.01°), thermal Marangoni convection, and mechanical vibrations cause the drop to "drift" axially. Under ultra-low tension, drops are hypersensitive; any rough manual magnification adjustment can cause rupture or data gaps.Deconstructing the Core PatentCNGTX 600/700 系列通过自有的“自动锁定和调整”专利技术，为液滴安装了“自动驾驶仪”：
The CNGTX 600/700 series installs an "autopilot" via its patented technology:- 智能检测（眼睛）：采用人工智能识别算法，即使在乳化、浑浊或极细长的复杂界面环境下，仍能像素级精准锁定液滴质心。
- AI Detection (The Eye) for pixel-level tracking in cloudy phases;
- 智能算法（大脑）：内置微控制器实时预测漂移趋势，通过智能算法消除稳态误差，确保调节过程如丝般顺滑。
- Intelligent Algorithms (The Brain) for smooth, trend-based intelligent correction;
- 精密控制（肌肉）：采用与五轴数控转台同源的蜗轮蜗杆传动结构。其天然的“自锁特性”和高减速比，能实现微弧度级的角度调整，将液滴稳稳地“刚性锁定”在屏幕中心。
Precision Mechanism (The Muscle) utilizing a self-locking Worm Gear structure (similar to 5-axis CNC tables) for micro-radian "rigid" locking.Core Benefits for Ultra-Low IFT- 像素级重复性：消除操作员个体差异，无论谁操作，液滴始终处于相同的光学中心以及光照条件下。
- Pixel-level Repeatability: Eliminates operator individual differences; the droplet is always in the same optical center and lighting conditions, regardless of who operates it.
- 支持“长时间”测试：满足较长时间的吸附平衡需求，彻底告别液滴移出视野导致实验失败的困扰。
Supports "long-term" testing: Meets the needs for longer adsorption equilibrium, completely eliminating the trouble of experimental failure caused by the droplet moving out of the field of view at night.Technical Comparison Summary | | | |
|---|
| 测量方式 | | | 智能化全自动测量 |
| 观测方式 | | | 全景+局部 双光路 |
| 位置控制 | | | AI锁定+自动控制 |
| 机械精度 | | | 高 微弧度级自锁机构 |
| 实验成功率 | | | 极高 (无人值守) |
拥有了这双“慧眼”，我们终于能够精准捕捉到那些曾经在传统测量中隐形、却又至关重要的超低界面张力信号。超低界面张力的测试也通常会用到EOR中表面活性剂的筛选与配方优化。然而，看清战场只是胜利的第一步。面对成千上万种化学试剂候选者，数据本身并不会自动转化为解决方案。真正的挑战在于：我们如何利用这些精确到 10-3mN/m 的微观数据来制定必胜的战术？如何将实验室里毛细管内的每一次旋转，转化为油田现场数百万吨采出液的高效分离？在这一终极篇章中，我们将离开观测台，走进配方设计的“指挥中心”，揭示工程师们如何利用这把科学标尺，从海量筛选到精细复配，一步步打造出能够一击制胜的“冠军破乳剂”。
With the "Eye of Science"—the —now fully open, we can finally precisely capture those Ultra-Low Interfacial Tension (Ultra-Low IFT) signals that were once invisible to traditional measurement methods. Testing ultra-low interfacial tension is also commonly used in EOR for the screening and formulation optimization of surfactants. However, seeing the battlefield clearly is only the first step toward victory. Faced with thousands of chemical reagent candidates, data itself does not automatically translate into a solution. The real challenge lies in: How do we use this data, precise to 10-3mN/m, to formulate a winning tactic? How do we translate every rotation within a laboratory capillary into the efficient separation of millions of tons of oilfield-produced fluid on site? In this final chapter, we leave the observation deck and enter the "Command Center" of formulation design, revealing how engineers utilize this scientific ruler—from massive screening to precise compounding—to forge the "Champion Demulsifier" capable of delivering a decisive blow.
